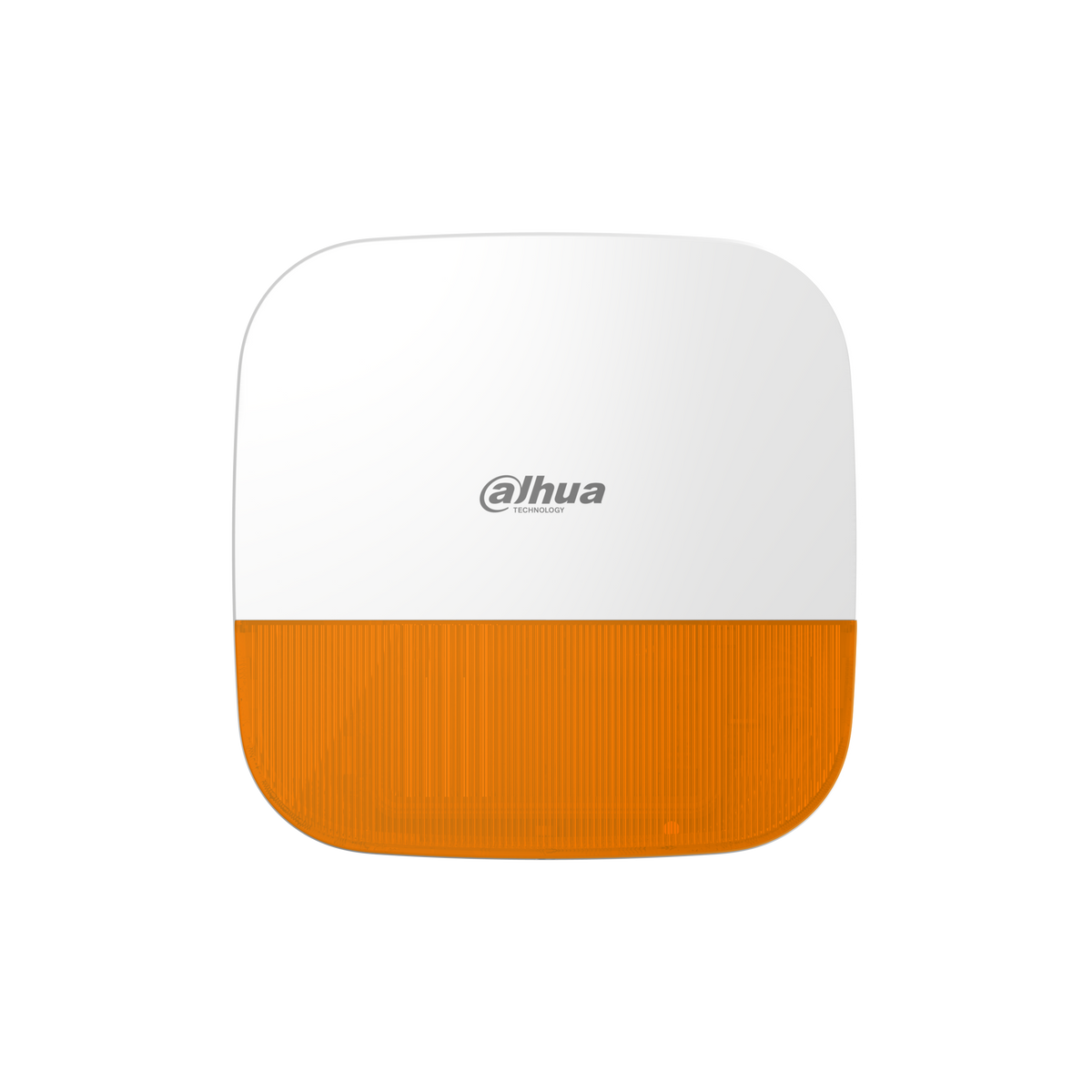

Dahua ARA13-W2 110 dB Wireless Outdoor Siren IP65
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
ARA13-W2
Wireless outdoor siren
> Outdoor product (–25 °C to +60 °C).
> 12 VDC and battery power supply.
> Multiple alarm sounds: Fire, medical, intrusion, panic, and more.
> Sound pressure level: 110 dB.
> Temperature monitoring.
> Frequency hopping and two-way communication.
> Cloud update and automatic recovery from update failure.
Product Data
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Indicator Light |
1 × green alarm indicator |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Button |
1 × power switch |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Buzzer |
1 × buzzer |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Remote Update |
Cloud update |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Low Battery Detection |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery Level Display |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Tamper |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Signal Strength |
Signal strength detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wireless |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Carrier Frequency |
433.1 MHz–434.6 MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Distance |
Up to 1,200 m (3,937.01 ft) in an open space |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Mechanism |
Two-way |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Frequency Hopping |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Encryption Mode |
AES128 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply Mode |
Battery (default), 12 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery Model |
CR123A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery Life |
4 CR123A batteries can be used for 3.4 years (if triggered fortnightly and the alarm sounds for 120 s each time with a battery efficiency of 80%) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–25 °C to + 60 °C (–13 °F to + 140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
200 mm × 200 mm × 52.5 mm (7.87" × 7.87" × 2.07") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
255 mm × 239 mm × 64 mm (10.04" × 9.41" × 2.52") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
610 g (1.34 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
920 g (2.03 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Wall mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing |
PC + ABS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP65 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
FCC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Technical |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scenario |
Outdoor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Current |
92 μA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Current |
420 mA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Sound and Light Alarm |
Light alarm and multiple alarm sounds, including fire, medical, intrusion, panic, and more. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Sound Pressure |
110 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Outdoor perimeter alarm alerting at gates, yards and building exteriors where a loud 110 dB siren and IP65 weather protection are needed.
Delivers a 110 dB sound pressure level so alarms are clearly audible across outdoor areas and outbuildings.
IP65-rated PC + ABS housing keeps the siren working through rain and dust across a –25 °C to +60 °C range.
Two-way communication with frequency hopping and AES128 encryption supports more reliable, protected alarm signalling.
