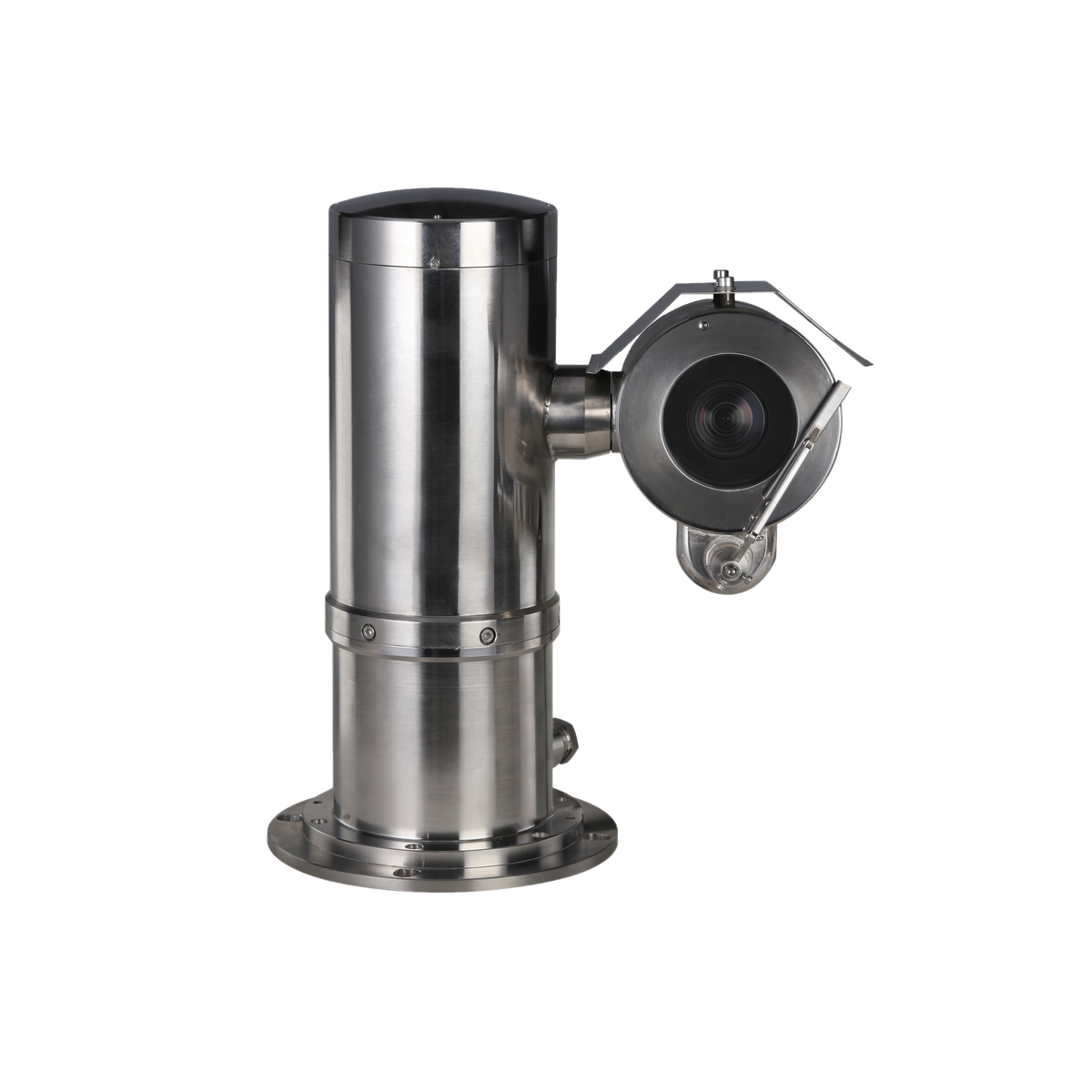

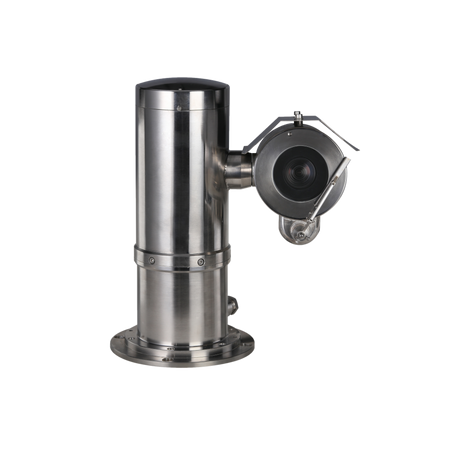

Dahua EPC245U-PTZ 2MP 45x Explosion-proof Network PTZ Camera
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
EPC245U-PTZ
2MP 45x Explosion-proof Network Positioning System
> Powerful 45x optical zoom
> 316L stainless steel housing
> Starlight technology
> H.265/H.264 Triple-stream Encoding
> Max. 50/60fps@1080P.
> IP68
Product Data
|
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1/2.8” STARVIS™ CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Effective Pixels |
1920(H) x 1080(V), 2 Megapixels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RAM/ROM |
512M/128M |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
1/1s~1/30,000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Minimum Illumination |
Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR Distance |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR On/Off Control |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR LEDs |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wiper |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
3.95mm~177.7mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Aperture |
F1.6~ F4.95 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Angle of View |
H: 70.3° ~ 1.8° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Optical Zoom |
45x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focus Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close Focus Distance |
100mm~ 1000mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DORI Distance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
2345m(7694ft) |
938m(3077ft) |
469m(1539ft) |
234m(768ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PTZ |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt Range |
Pan: 0° ~ 360° endless; Tilt: -90° ~ 90° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manual Control Speed |
Pan: 0.1° ~40° /s; Tilt: 0.1° ~40° /s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Preset Speed |
Pan: 40° /s; Tilt: 40° /s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Presets |
256 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PTZ Mode |
5 Scan, 8 Tour |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Speed Setup |
Human-oriented focal Length/speed adaptation |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power up Action |
Auto restore to previous PTZ and lens status after power failure |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Idle Motion |
Activate Preset/Scan/Tour if there is no command in the specified period |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protocol |
DH-SD, Pelco-P/D (Auto recognition) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Long-range surveillance of hazardous industrial areas where an explosion-proof, corrosion-resistant PTZ camera is required.
The powerful 45x zoom lets operators pull in distant details across large industrial perimeters from a single mounting point.
A 316L stainless steel body supports reliable operation in corrosive and demanding site conditions.
STARVIS sensor and Starlight technology deliver usable color images in very low light for around-the-clock monitoring.
