Home » Dahua IPC-EB5531-M/M12 5MP Panoramic Fisheye Network Camera
DAHUA IPC-EB5531-M/M12 5MP Panaromic Network Fisheye Camera
DAHUA IPC-EB5531-M/M12 5MP Panaromic Network Fisheye Camera
icctvzone

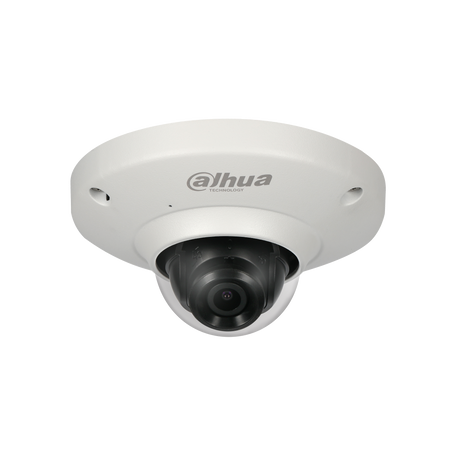

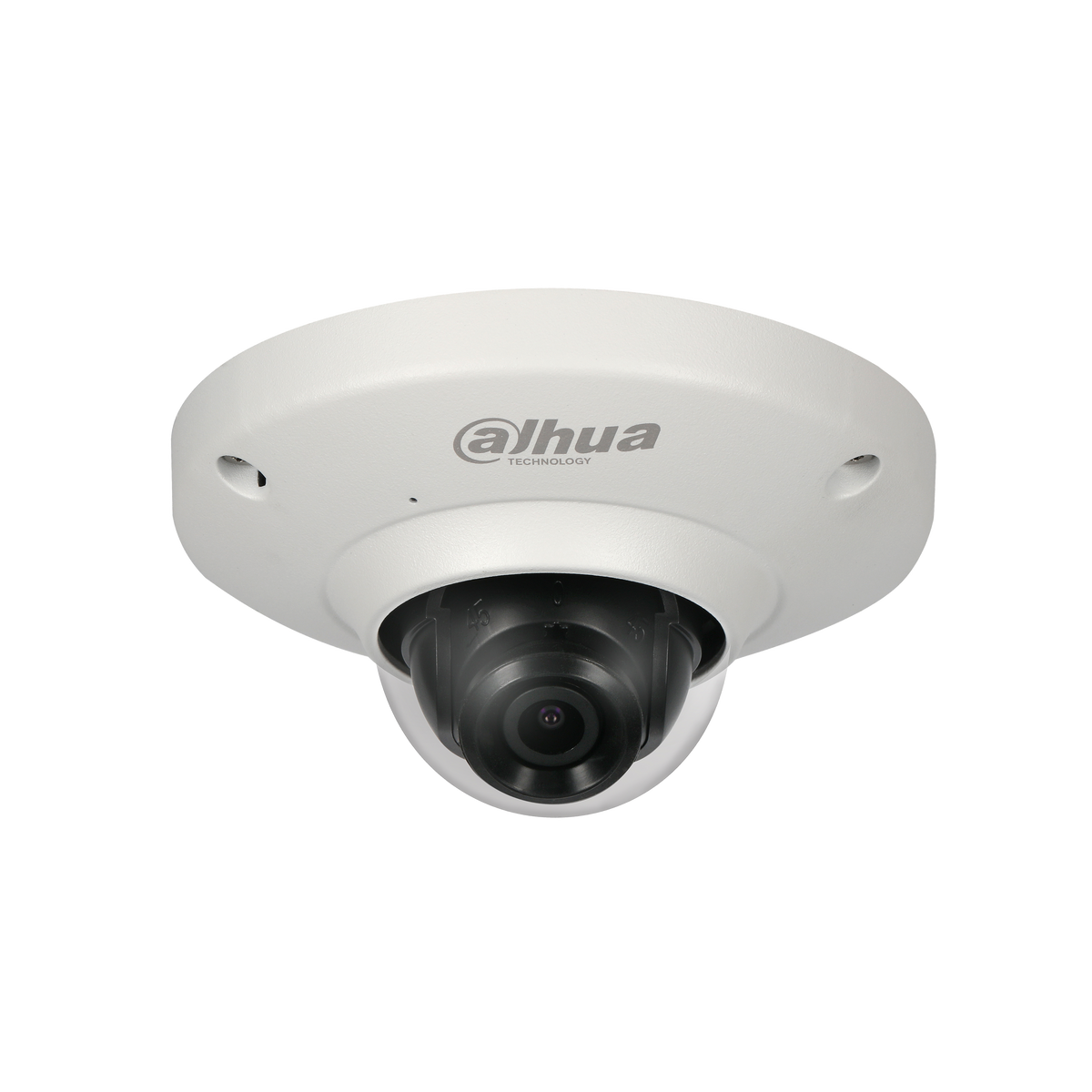

Dahua IPC-EB5531-M/M12 5MP Panoramic Fisheye Network Camera

In stock
SKU: IPC-EB5531-M/M12
$1,000,000.00

This is a placeholder price. Please contact us for a quote.

Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

IPC-EB5531-M/M12



5MP Panaromic Network Fisheye Camera

> 1/2.7” 5Megapixel progressive scan CMOS
> H.265&H.264 triple-stream encoding
> 25fps@5MP(2592×1944) ,25/30fps@3MP(2048×1520)
> Smart Detection supported
> WDR(120dB), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 1.4mm fixed lens
> Built-in Mic
> Micro SD memory, IP67, PoE

Product Data

Camera

Image Sensor

1/2.7” 5Megapixel progressive scan CMOS

Effective Pixels

2592(H)x1944(V)

RAM/ROM

512MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3(4)~1/100000s

Minimum Illumination

0.02Lux/F1.6( Color,1/3s,30IRE)

0.2Lux/1.6( Color,1/30s,30IRE)

0.05Lux/F1.6( B/W,1/3s,30IRE)

0.5Lux/1.6( B/W,1/30s,30IRE)

S/N Ratio

More than 50dB

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

1.4mm

Max. Aperture

F1.6

Angle of View

H: 180°, V: 180°

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

N/A

DORI Distance

Lens

Detect

Observe

Recognize

Identify

1.4mm

28m(92ft)

11m(36ft)

6m(20ft)

3m(10ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0˚~355˚; Tilt:0˚~75˚; Rotation:0˚~360˚

Intelligence

Advanced Intelligent Functions

Tripwire ,Intrusion,Heat map

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

5M(2592×1944)/3M(2048×1536)/UXGA(1600×1200)/1.3M(1280×960)/D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main Stream:5M(1~25fps)

Sub Stream: D1(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24~10240Kbps

H.265: 14~9984Kbps

Day/Night

Electronic

BLC Mode

BLC / HLC / WDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

N/A

Defog

N/A

Digital Zoom

16x

Flip

N/A

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/ G.711Mu/ AAC/ G.726

Network

Ethernet

RJ-45 (10/100Base-T)/M12 D-coding

Protocol

HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;

FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;

UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;

IGMP; SNMP

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users /20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, Easy4ip

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

Built-in Mic

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V(-M support), PoE (802.3af)(Class 0)

Power Consumption

<3.4W

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK08

Construction

Casing

Metal

Dimensions

Φ110mm×56mm (4.33”×2.2”)

Net Weight

0.38Kg (0.84lb)

Gross Weight

0.44Kg (0.97lb)

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Single-camera panoramic coverage of retail floors, lobbies and small indoor spaces where a 180° fisheye view replaces multiple fixed cameras.

Before you orderConfirm your recorder supports H.265/H.264 triple-stream decoding, PoE power and a Micro SD card if you plan local recording.
01
Full Panoramic View

The 1.4mm fixed lens delivers a 180° horizontal and vertical view, letting one camera watch a whole room instead of several.

02
Clear 5MP Detail

A 1/2.7" 5MP progressive scan CMOS captures 2592x1944 images at up to 25fps for recognizable detail across the scene.

03
Smart Detection Built In

Tripwire, intrusion and heat map analytics plus 120dB WDR help you spot events and keep footage usable in uneven lighting.
