DAHUA KTA04 Video Intercom KIT
DAHUA KTA04 Video Intercom KIT
icctvzone

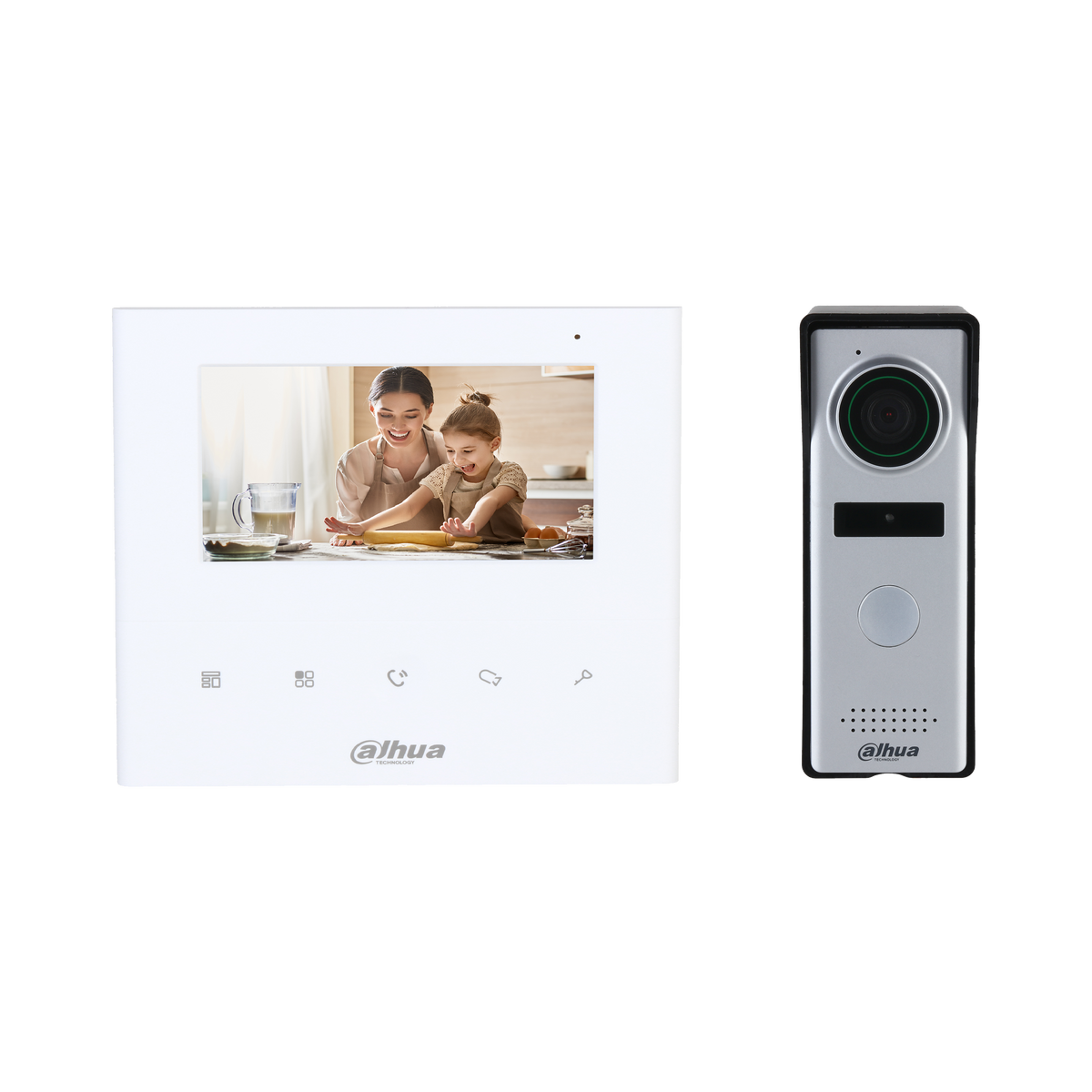

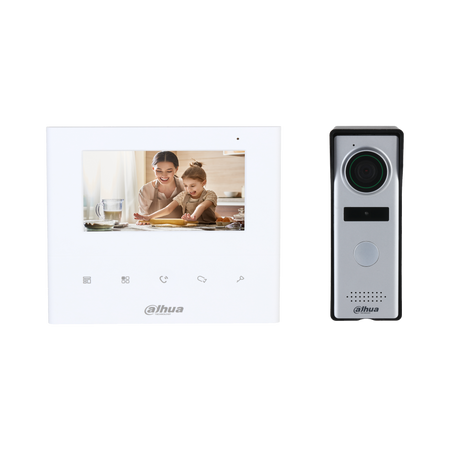

Dahua KTA04 Video Intercom Kit with 4.3" Indoor Monitor and 1.3 MP Outdoor Station

In stock
SKU: KTA04
$70.00
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

KTA04

Video Intercom KIT

> Video intercom function: Unlock, voice call, video call, volume
> Multiple bell sounds
> Support digital wide dynamic range (DWDR)



Product Data

DHI-VTH1010J

System

Button Type

Touch button

Basic

Display

4.3" TFT

Screen Resolution

480 (H) × 272 (V)

Function

Communication Mode

Analog

Performance

Casing

ABS

General

Color

White

Power Supply

12 VDC 1 A

Power Adapter

Included

Installation

Surface mount

Certifications

CE/FCC

Accessory

Bracket (included)

Dimensions

136.00 mm × 140.00 mm × 18.30 mm (5.35" × 5.51" × 0.72")

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–95% (RH)

Power Consumption

≤ 2 W (standby)
≤ 5 W (working)

Net Weight

0.16 kg (0.35 lb)

Gross Weight

0.42 kg (0.96 lb)

DHI-VTO1000J

System

Button Type

Mechanical

Basic

Camera

1.3 MP CMOS

Field of View

Horizontal: 70°
Vertical: 40°

WDR

DWDR

Illuminator Type

Auto IR

Day/Night

ICR auto switch

Audio Input

1 channel to the microphone; pickup distance 0.5 m

Audio Output

1 channel to the speaker

Status Indicator

1 indicator light
Green: Power on

Function

Communication Method

Analog

Unlock Mode

Remote unlock

Performance

Casing

PC + ABS

Port

Exit Button

1

Door Status Detection

1

General

Color

Silver

Power Supply

Powered by indoor monitor

Installation

Surface mount

Certifications

CE/FCC

Accessory

Rain cover (included)

Dimensions

131.45 mm × 46.00 mm × 33.80 mm (5.18" × 1.81" × 1.33")

Protection Grade

IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

10%–95% (RH)

Power Consumption

≤ 1 W (standby)
≤ 3 W (working)

Net Weight

0.18 kg (0.40 lb)

Gross Weight

0.38 kg (0.84 lb)

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

A single-door home or small office entry point where visitors are verified by video and released with remote unlock from an indoor monitor.

Before you orderConfirm your door setup matches the analog 4-wire series and that the outdoor station can be powered from the indoor monitor before ordering.
01
See and Speak

The outdoor station's 1.3 MP camera with DWDR and auto IR helps you identify visitors in bright or low-light doorways before answering.

02
Simple Indoor Control

A 4.3" TFT touch-button monitor handles voice and video calls, remote unlock and volume so daily door answering stays straightforward.

03
Weather-Ready Outdoor Unit

The outdoor station carries an IP66 rating and ships with a rain cover, supporting reliable mounting at exposed entrances when gaps are sealed.
